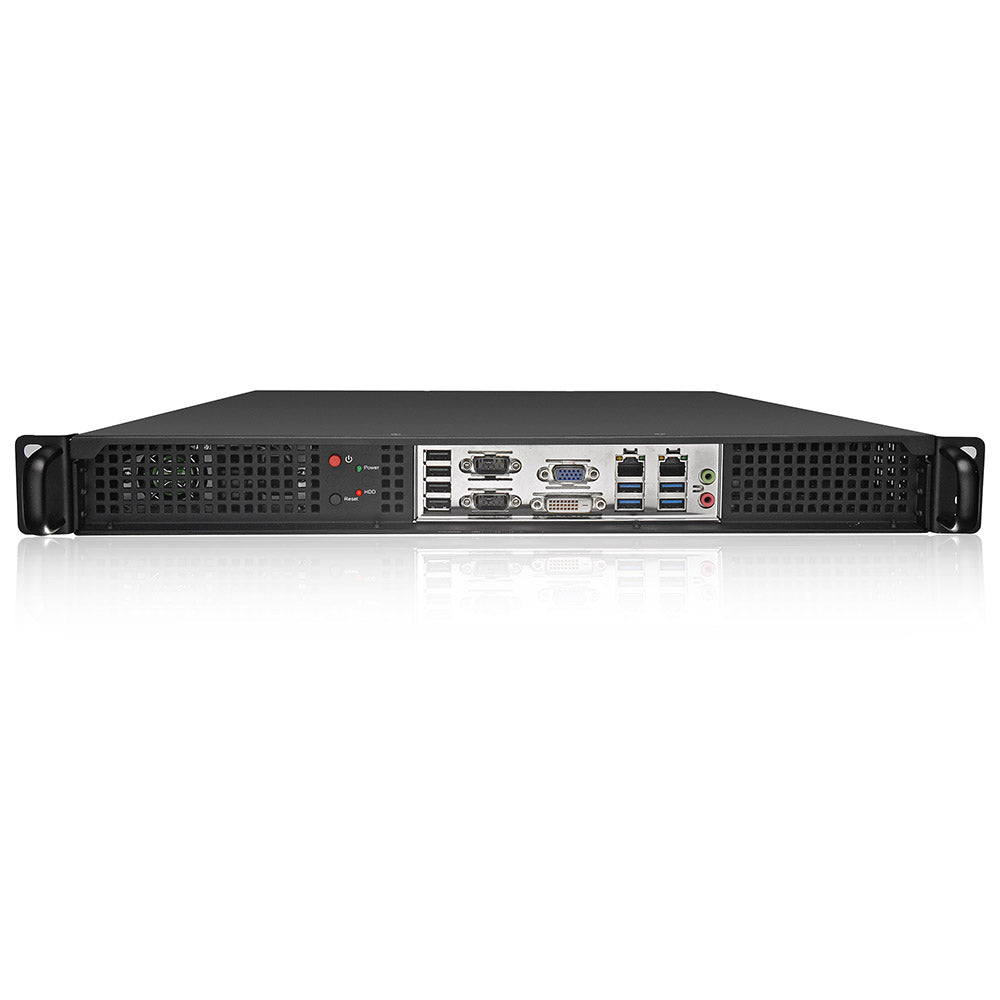

EasyStream Moi-V TV Gateway
EasyStream Moi-V TV Gateway
- EasyStream Moi-V TV Gateway
- Base system only
- No DVB tuner cards installed
- Up to 300 channels
- Up to 48 DVB Tuners
The EasyStream Moi V TV Gateway comes with a simple web interface for easily receiving and streaming TV channels from either DVBT/T2, DVBS/S2 or DVBC feeds.
Build your own TV Gateway
EasyStream can custom build your TV Gateway with a range of DVBT / DVBS / DVBC / HDMI and ASI inputs.
Add your corporate branding
The EasyStream TV Gateway server can be configured with your own logo and company name.
Custom development
Using our team of in house developers, we can custom develop our IPTV streaming servers to your requirements.
SIMPLE WEB INTERFACE
Tune the adaptor
EasyStream will automatically create a tuning page for each adaptor installed. Simply tune the adaptor and scan for channels.
Select the channels to stream
Once a scan has completed simply select the channels that you want to stream
System monitoring
Sit back and relax, EasyStream will monitor your streams and will let you know if something goes wrong.
| 1U Chassis (430*320*46mm) | |
| Processor | AMD® Embedded G-Series SoC (Quad Core, 2GHz) |
| Memory | 4GB DDR3 1333 |
| Graphics | Integrated AMD Radeon™ HD |
| APU | AMD® Embedded G-Series SoC |
| Ethernet | 2x LAN Gbit / 100 Mbit / 10 Mbit, |
| Storage | 1 x SATA 6.0 Gb/s |
| SSD | 30G mSATA SSD |
| LPC | 1 x LPC support TPM module |
| 2 x COM HEADER | |
| FRONT PANEL | POWER SW |
| RESET SW | |
| POWER LED | |
| HDD LED | |
| Display Interface | 1 x HDMI |
| 1 x VGA (The reserved connection) | |
| USB | 2 x USB 2.0 |
| 2 x USB 3.0 | |
| Expansion Interface | 1 x Full-Size Mini-PCIe |
| (w/USB, PCle x 1 Single) | |
| SBC dimension | 128 *104 mm |
| Operating Systems | Ubuntu |
