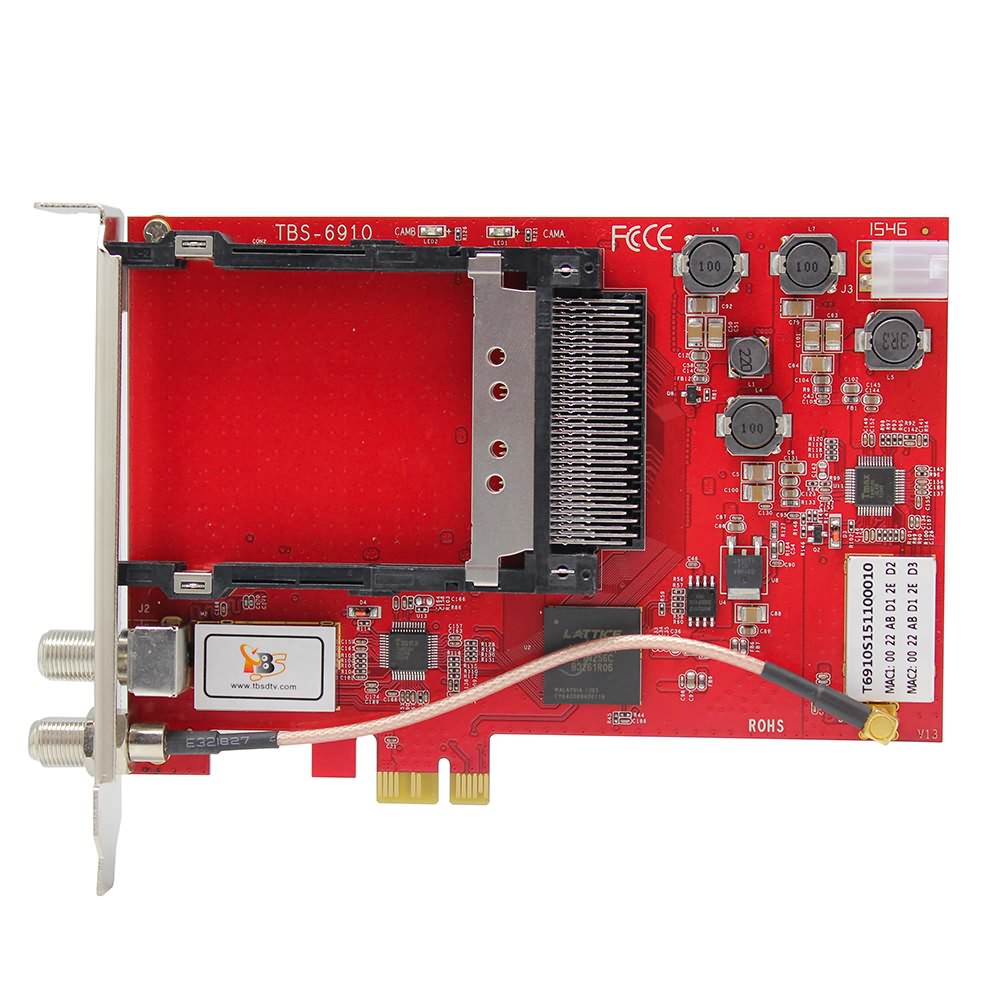

TBS6910 DVB-S2 Dual Tuner Dual CI PCIe Card is a twin tuner digital satellite TV for watching or recording two different channels from two different frequencies simultaneously. You can use one tuner to watch TV channel while using another tuner to record/watch another channel from another transponder/ satellite at same time. TBS6910 is integrated with two CI slots, inserting the correct CAM and subscription smartcard into the CI slot makes it possible to watch encrypted pay TV.

Main Features
Watch satellite TV & listen to radio on PC
DVB-S/S2 SD or HD TV receiving
Dual tuner and dual CI slots for decrypt the encrypted TV
Time shifting to pause live TV
Blindscan support
Unicable/one cable compatible
High-speed data download via satellite

Application
Data receiving
IPTV streaming
Media monitoring
Digital content distribution

Specifications:
Frequency range: 950~2150 MHz
Input level: -69-23dBm
2x DVB-S2/S 8PSK QPSK demodulator
Symbol rate:
    DVB-S QPSK 1~45Msps
    DVB-S2 QPSK/8PSK 1~45Msps
Carrier capture range: ±10MHz
    DVB-S2 CCM:
        QPSK +1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
        8PSK +3/5. 2/3. 3/4. 5/6. 8/9. 9/10
    DVB-S
        QPSK +1/2, 2/3, 3/4, 5/6, 7/8
Support data burst & tone burst
Support DiSEqC2.X and motor
Dual CI slot
Dimension: 145*104.5mm (length x height)
Max Power consumption: 15W

System Requirements
Windows 2000/XP/Vista/7/8/10 or Linux OS
Available PCI Express x1, x4, x8 or x16 slot
Satellite dish and LNB

Package Contents
1 x TBS6910
1 x DC line
