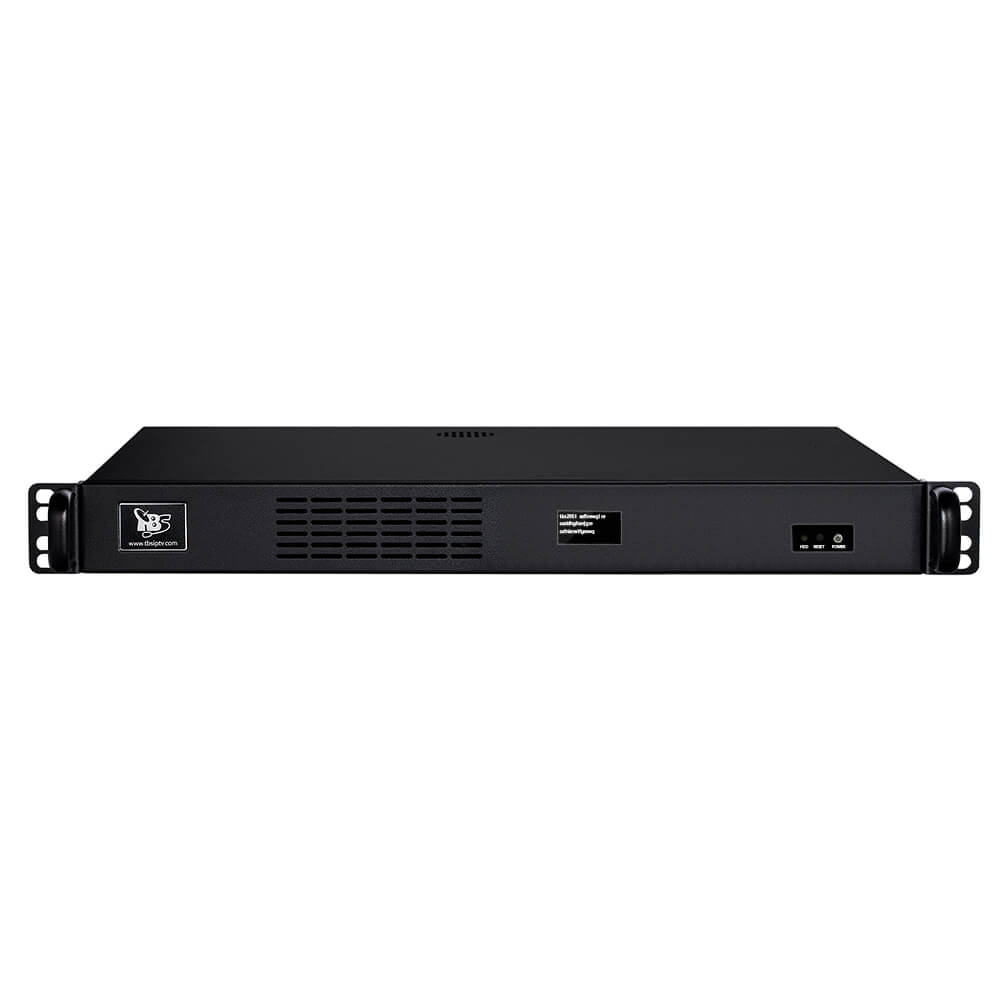

EasyStream MOI Pro AMD TV Gateway

EasyStream MOI Pro AMD TV Gateway

EasyStream MOI Pro AMD TV Gateway

Regular price

Call for price



  • EasyStream Moi Pro AMD TV Gateway
  • Base system only
  • No DVB tuner cards installed

The EasyStream Moi Pro AMD TV Gateway comes with a simple web interface for easily receiving and streaming TV channels from either DVBT/T2, DVBS/S2 or DVBC feeds.

Build your own TV Gateway

EasyStream can custom build your TV Gateway with a range of DVBT / DVBS / DVBC / HDMI and ASI inputs.

Add your corporate branding

The EasyStream...

Contact us

Next Product →



  • EasyStream Moi Pro AMD TV Gateway
  • Base system only
  • No DVB tuner cards installed

The EasyStream Moi Pro AMD TV Gateway comes with a simple web interface for easily receiving and streaming TV channels from either DVBT/T2, DVBS/S2 or DVBC feeds.

Build your own TV Gateway

EasyStream can custom build your TV Gateway with a range of DVBT / DVBS / DVBC / HDMI and ASI inputs.

Add your corporate branding

The EasyStream TV Gateway can be configured with your own logo and company name.

Custom development

Using our team of in house developers, we can custom develop our IPTV streaming servers to your requirements.

SIMPLE WEB INTERFACE

Tune the adaptor

EasyStream will automatically create a tuning page for each adaptor installed. Simply tune the adaptor and scan for channels.

Select the channels to stream

Once a scan has completed simply select the channels that you want to stream

System monitoring

Sit back and relax, EasyStream will monitor your streams and will let you know if something goes wrong.



1U Chassis (430*320*46mm)
Processor AMD® Embedded G-Series SoC (Quad Core, 2GHz)
Memory 4GB DDR3 1333
Graphics Integrated AMD Radeon™ HD
APU AMD® Embedded G-Series SoC
Ethernet 2x LAN Gbit / 100 Mbit / 10 Mbit,
Storage 1 x SATA 6.0 Gb/s
SSD 30G mSATA SSD
LPC 1 x LPC support TPM module
2 x COM HEADER
FRONT PANEL POWER SW
RESET SW
POWER LED
HDD LED
Display Interface 1 x HDMI
1 x VGA (The reserved connection)
USB 2 x USB 2.0
2 x USB 3.0
Expansion Interface 1 x Full-Size Mini-PCIe
(w/USB, PCle x 1 Single)
SBC dimension 128 *104 mm
Operating Systems Microsoft® Windows 8, Microsoft® Windows 7,
Microsoft® Windows® 7/8 embedded Standard, Microsoft® Windows® 7 Embedded Compact
Linux, Ubuntu,
DVB tuner card support Up to 32 TV tuners (4 TV tuner PCIe cards)
Pre-installed software Tvheadend, VDR, MuMuDVB, DVBlast, szap-s2, dvbdate, dvbscan, dvbdstream, dvbsnoop, scan-s2, szap-s2, tzap-t2, LIRC, telnet, ssh, ftp, samba
