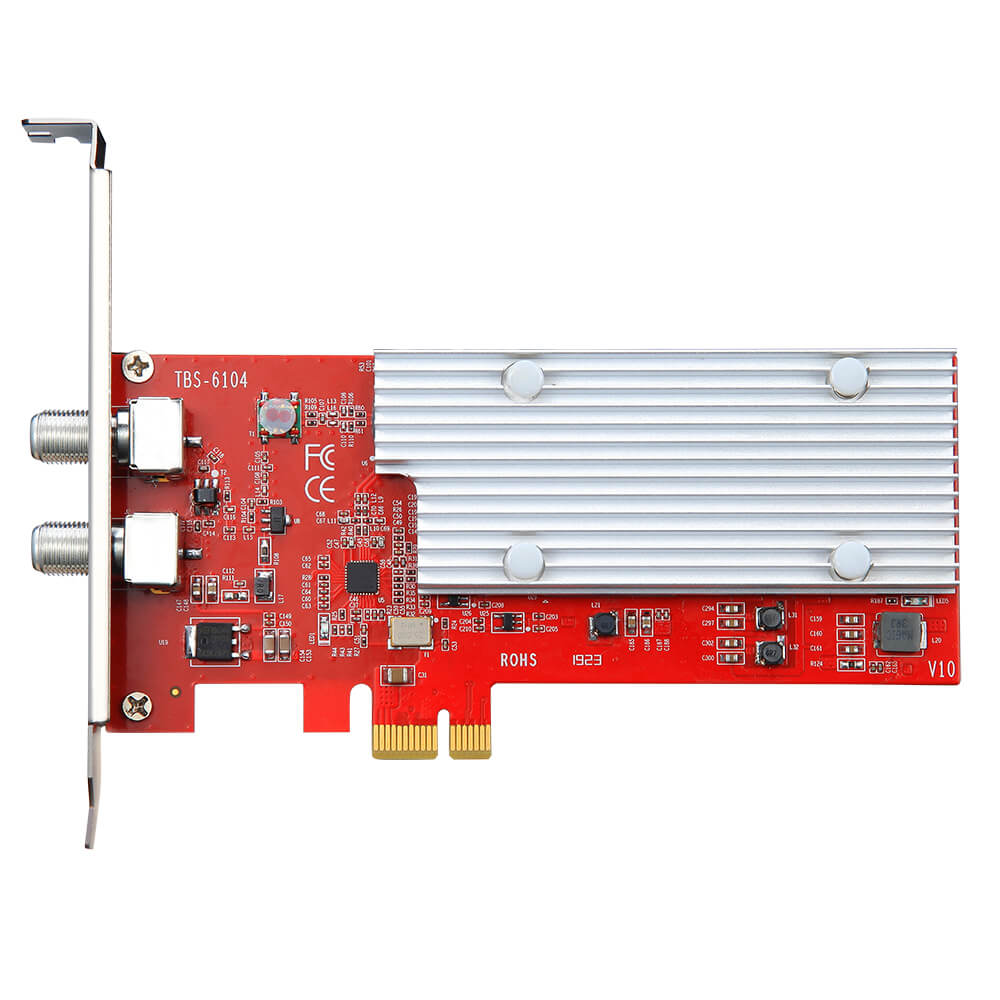

TBS6104 DVB-T Quad Modulator Card
TBS6104 DVB-T Quad Modulator Card
TBS6104 is a DVB-T modulator card, it works as a DVB-T signal generator and supports 4- frequencies DVB-T transmission.This quad card can convert transport stream to DVB-T signal, for example, you can use a TBS DVB-S2 TV tuner card to receive satellite TV channels and at the same time use this modulator card to convert the DVB-S2 TS to DVB-T signal, a modern TV or Set-Top-Box with DVB-T tuner integrated can be used to receive the terrestrial signal easily from the modulator card.
TBS6104 provides a very cost-effective solution to transfer other digital resources, like DVB-S2/S, DVB-C, ISDB-T, ATSC or even IPTV resources into an existing DVB-T system in hotels, hospitals, or dormitories.
Possible Inputs | DVB-S2/S, DVB-C, ISDB-T, ATSC or IPTV resources | |
Outputs | DVB-T in 4 frequencies | |
Rango de frecuencias | 50 ~ 950 MHz | |
Ancho de banda del canal | 6,7,8 MHz | |
Level | 5-120 | |
FFT | 2K,8K | |
FEC | QPSK,16QAM,64QAM | |
Tasa de código | 1/2, 2/3, 3/4,5/6,5/8,1 | |
Guard interval: | 1/4,1/8,1/16,1/32 | |
Max bit rate | 27Mbps/per channel | |
Working Temperature | -40°~85° | |
Poder | 10W | |
Requisitos del sistema | Linux | |
Ranura PCI Express x1, x4, x8 o x16 disponible | ||
Contenido del paquete | 1 * TBS6104 | |
1 * low profile bracket | ||
F-IEC connector | ||
Card Size | Tamaño de la caja de regalo | Gross Weight |
130mm * 68.7mm | 200*138*50mm | 0.5kg |
