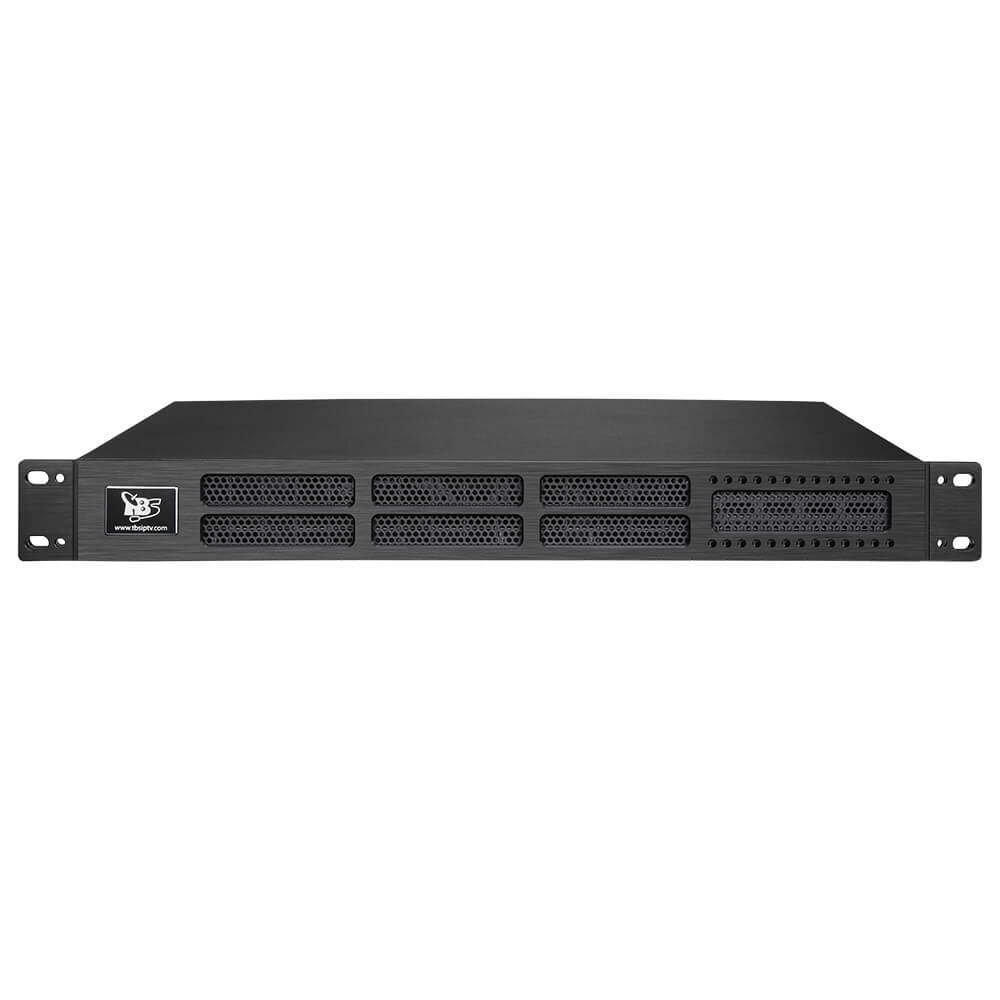

TBS2650 is a professional 4K/H.265 HDMI encoder, which is our newest HD audio & video encoding device with powerful functionality. It supports real 4K, up to max 3840 x 2160P@30fps.

TBS2650 HDMI Video encoder not only supports 8 channels 4K or 20 channels H.265 encoding, but also supports multiprotocol output, each channel supports HTTP/HLS/RTMP/RTSP/UDP protocols simultaneously for outputting. Which is ideal for the customers who need to output with different protocols.

TBS2650 is coupled with Web...

en stock

TBS2650 is a professional 4K/H.265 HDMI encoder, which is our newest HD audio & video encoding device with powerful functionality. It supports real 4K, up to max 3840 x 2160P@30fps.

TBS2650 HDMI Video encoder not only supports 8 channels 4K or 20 channels H.265 encoding, but also supports multiprotocol output, each channel supports HTTP/HLS/RTMP/RTSP/UDP protocols simultaneously for outputting. Which is ideal for the customers who need to output with different protocols.

TBS2650 is coupled with Web UI managing system and telnet remote access, and with video mix and split screen display function, which provide users flexible choices to control the encoder at anytime and anywhere.

El producto se puede aplicar a la educación, atención médica, IPTV, Conferencia, educación remota, entrevista de noticias, banca, transporte y otras industrias.

Model number TBS2650
Entrada de vídeo 20x HDMI 1.4
Entrada de audio Audio integrado HDMI
Ethernet 4xRJ45 1Gbps
Video
Resolución 3840x2160, 3392x2208, 2592x1520, 2560x1440, 2304x1296, 1920x1090, 1690x1056, 1290x720, 1024x576, 850x490, 720x576, 640x490, 360x240, and etc.
Codificación H264 base line, H264 Main, H264 High, H265 Main
Velocidad de datos 0.8Mbps~20Mbps
Control de tarifas CBR/VBR
Protocolo HTTP/HLS/RTMP/RTSP/ UDP
Pretratamiento avanzado De-interlacing, Noise Reduction, Sharpening.
Audio
Codificación AAC, MP3, PCMA, MEPG2
Bite rate 16K, 32K, 44.1K, 48K
Precisión de muestreo de 16 bits
Velocidad de datos 64Kb/s ~ 256Kb/s
Dimensión 1U (482*281*44.4mm)
Poder less than 60W
