TBS2662 HDMI/CVBS H.265/H.264 Video Decoder
TBS2662 HDMI/CVBS H.265/H.264 Video Decoder

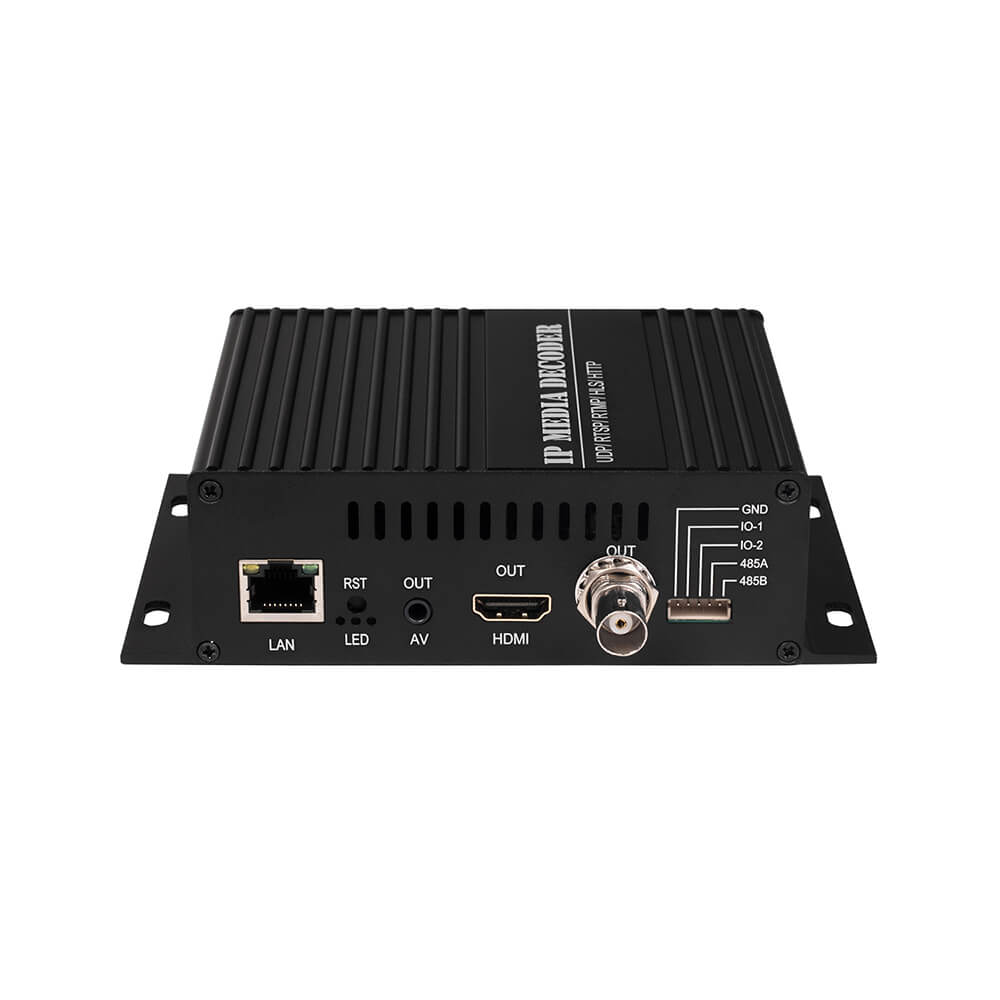

TBS2662 is a HDMI/CVBS HD decoder, Support 1 channel HD HDMI or 1 channel CVBS output, AAC/ MP3 audio format. TBS2662 is a code engine with the ability to decode up to 1080p 60 video, compatible with multi-protocol, supports RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP/ SLK decode, supports H.264/ H.265 RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP/ SLK input.
Key features
- Control multi encoder based on one computer
- H.264/ H.265 RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP input
- Output: HDMI + CVBS + audio
- Up to 1080P 60 output
- Support rtsp/ http/ udp/ rtmp/ hls/ rtp/ SLK
- Multi-screen split (1、4 screens)
- Reset button
- low consumption
| Modelo | TBS2662 HDMI/CVBS HD decoder | |
| Salida | 1×HDMI or 1 x CVBS, 1ch audio | |
| Entrada | IP ( RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP/ SLK) | |
| Video | Resolución | up to 1920x1080P 60 (NO fluctuating) |
| Decoding | H.264 BASELINE PROFILE H.264 MAIN PROFILE / H.265 MAIN PROFILE H.264 HIGH PROFILE |
|
| Multi-screen | 1、4 | |
| Protocolo | rtsp/ http/ udp/ rtmp/ hls/ rtp/ SLK | |
| AUDIO | Salida | 1×3.5 independent audio/ HDMI embedded audio |
| Formato | AAC/MP3/G711 | |
| IPInput | 1× RJ 100M/1000M, TCP, UDP | |
| Sistema | Configure | IE |
| Poder | 12V ~ 2A | |
| Consumption | 4W | |
| Tamaño | 100mm x 118mm x 40mm | |
| working temperature | -20 ° C + 60 ° C | |
| working humidity | < 90% | |
| Peso | 0.3KG | |
