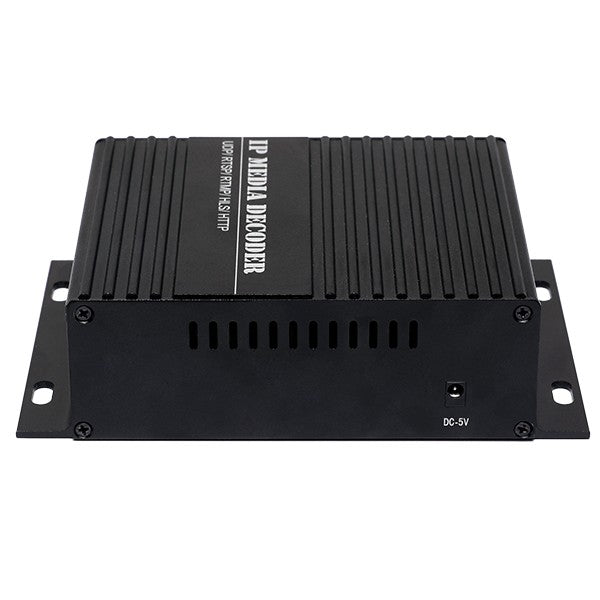

Decodificador de TBS2661 HDMI + VGA HD (H. 264/H. 265)
Decodificador de TBS2661 HDMI + VGA HD (H. 264/H. 265)
1 channel HD HDMI and 1 channel VGA output, AAC/ MP3 audio format.
Input - rtsp/ http/ udp/ rtmp/ hls/ rtp protocol.
Mosaic up to 9 IP channels on 1 screen.
Ideal for simple monitoring of 9 IP channels.
Key features
- Embedded hardware
- control the multi encoder based on one computer
- H.264/ H.265 output
- Output: HDMI+ VGA
- Up to 720P，1080P output
- Support rtsp/ http/ udp/ rtmp/ hls/ rtp
- Multi-screen split
- 1、4、9 screens output
- BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
- Bulti-in or independent MP3,AAC
- Reset bottom
- low consumption
| Modelo | TBS2661 HEVC & AVC HDMI+ VGA HD decoder | |
| Salida | 1×HDMI，1×VGA, 1ch audio | |
| Entrada | IP( RTMP/ RTSP/ RTP/ HTTP/ HLS/ UDP) | |
| Video | Resolución | up to 1920x1080P 60 (NO fluctuating) |
| Decoding | H.264 BASELINE PROFILE / H.265 BASELINE PROFILE H.264 MAIN PROFILE / H.265 MAIN PROFILE H.264 HIGH PROFILE / H.265 HIGH PROFILE | |
| Multi-screen | 1、4、9 | |
| Protocolo | rtsp/ http/ udp/ rtmp/ hls/ rtp | |
| AUDIO | Salida | 1×3.5 independent audio/ HDMI/ VGA embedded audio |
| Formato | AAC/MP3/G711 | |
| IP Input | 1× RJ 100M/1000M, TCP, UDP | |
| Sistema | Configure | IE, remote upgrade, APP |
| Poder | 5V~2A | |
| Consumption | 5W | |
| Tamaño | 100mm x 118mm x 40mm | |
| working temperature | -20 ° C + 60 ° C | |
| working humidity | <90% | |
| Peso | 0.3KG | |
