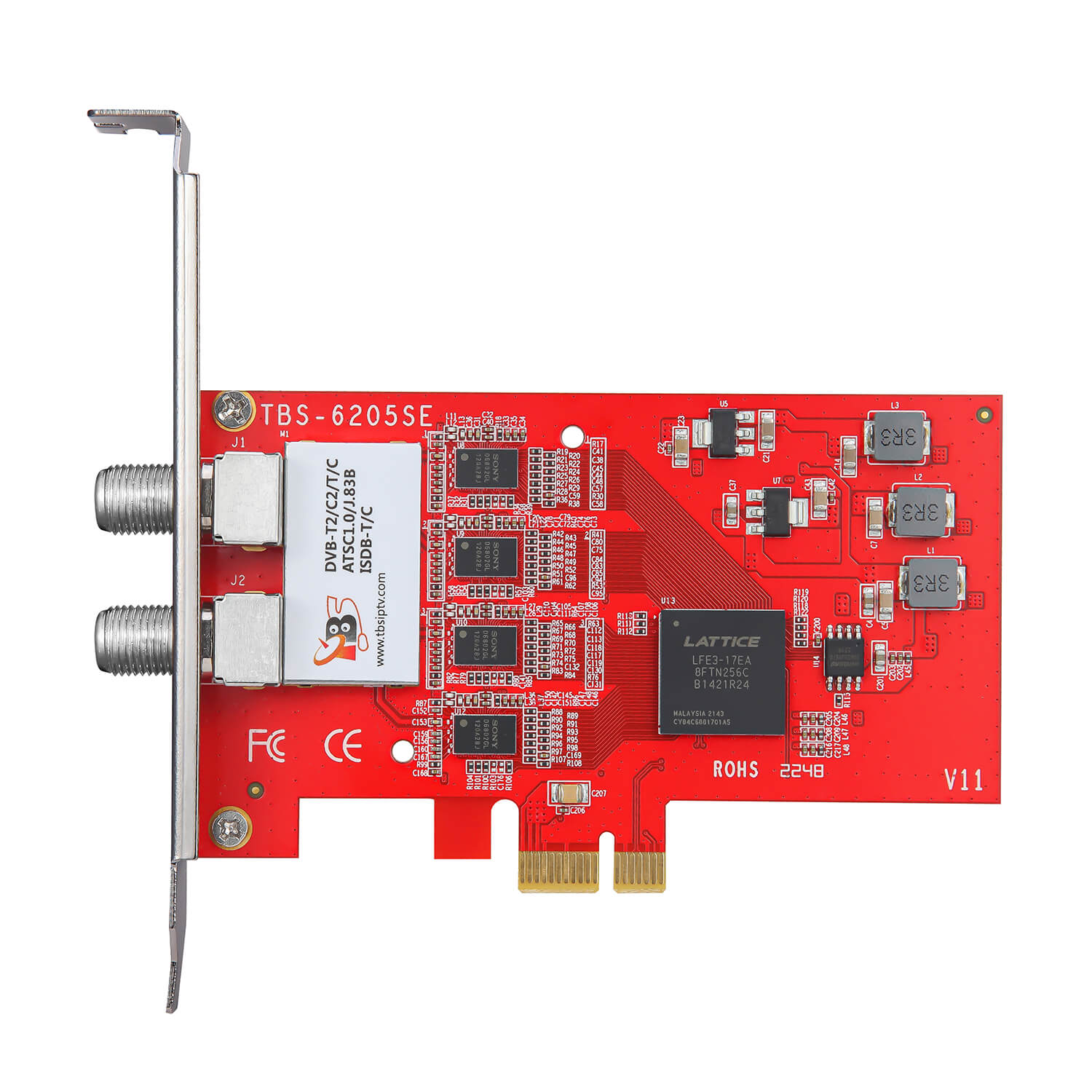

TBS6205se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 Quad TV Tuner Card
TBS6205se DVB-T2/C2/T/C(J.83A/B/C)/ISDB-T/C /ATSC1.0 Quad TV Tuner Card
TBS6205se DVB-T2/C2/T/C（J.83A/B/C）/ISDB-T/C /ATSC1.0. TV Quad tuner card works also as a digital video recorder for recording digital terrestrial TV programs with full HDTV support. TBS6205se is considered as a professional TV tuner for industrial-level users. When the PCIe slots in the server is limited, TBS6205se enables you to receive more channels than the usual dual TV tuner. Thus, it is highly recommended for IPTV streaming and broadcasting system. This card provides a powerful and reliable solution for IPTV streaming and broadcasting systems, allowing users to receive more channels than the usual dual TV tuner even with limited PCIe slots. TBS6205se is designed for professional-level users and offers full HDTV support for digital terrestrial TV programs.
Características principales:
- DVB-T2/C2/T/C（J.83A/B/C）,ISDB-T/C ,ATSC1.0. SD or HD TV receiving
- Quad channel receiving simultaneously
- High-definition video, real-Time and scheduled video recording
- High sensitivity DVB-T2 quad Tuner for the best digital TV reception
- Controlador BDA de Windows y controlador de Linux listo
| DVB-T2 y T2-Lite | Canal de recepción: banda VHF, banda UHF |
| Ancho de banda: 1,7, 5, 6, 7, 8MHz | |
| Modo FFT: 1K, 2K, 4K, 8K, 16K, 32K | |
| 1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals | |
| 16, 32, 64, 128 and 256QAM modulations | |
| Code rate: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6 | |
| DVB-T | 6, 7 and 8MHz channel bandwidths |
| 2 and 8K FFT | |
| QPSK, 16 and 64QAM | |
| 1/2, 2/3, 3/4, 5/6 and 7/8 code rates | |
| DVB-C2 | 6 and 8MHz channel bandwidths |
| 1/64 and 1/128 guard intervals | |
| 16, 64, 256, 1024, 4096 QAM | |
| 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 code rates | |
| DVB-C | 1.7 to 7.2 Msym/s |
| 16, 32, 64, 128 and 256QAM | |
| 0.15 roll-off factor | |
| ISDB-T | 6, 7 and 8MHz bandwidth |
| 2, 4 and 8K FFT | |
| 1/32, 1/16, 1/8 and 1/4 guard intervals | |
| QPSK, 16QAM and 64QAM | |
| ISDB-C | 5.274 Msym/s |
| 0.13 roll-off factor | |
| 64 and 256QAM | |
| TSMF (Transport Streams Multiplexing Frame) | |
| J.83B (ITU-T J.83 v3.0 Annex B) | 5.056941, 5.360537, 5.6 Msym/s |
| 0.18 and 0.12 roll-off factor | |
| 64 and 256QAM | |
| ATSC1.0 | 6MHz channel bandwidths |
| 8VSB modulation | |
| 2/3 code rate | |
| Consumo de energía | |
| Entrada/potencia: | 12V/8W |
| Temperatura | 0 ~ 60℃ |
| Requisitos del sistema | Windows XP/Vista/7/8/10, Linux |
| Ranura PCI Express x1, x4, x8 o x16 disponible | |
| Digital TV signal DVB-T2/C2/T/C(J.83A/B/C), ISDB-T/C, ATSC1.0. | |
| Contenido del paquete | 1 x TBS6205se |
| 1 x línea de CC | |
| 1 x F Connector | |
