TBS6522H Multi-Standard Quad (2SAT+ 2Ter/Cable) Tuner PCI-E Card
TBS6522H Multi-Standard Quad (2SAT+ 2Ter/Cable) Tuner PCI-E Card

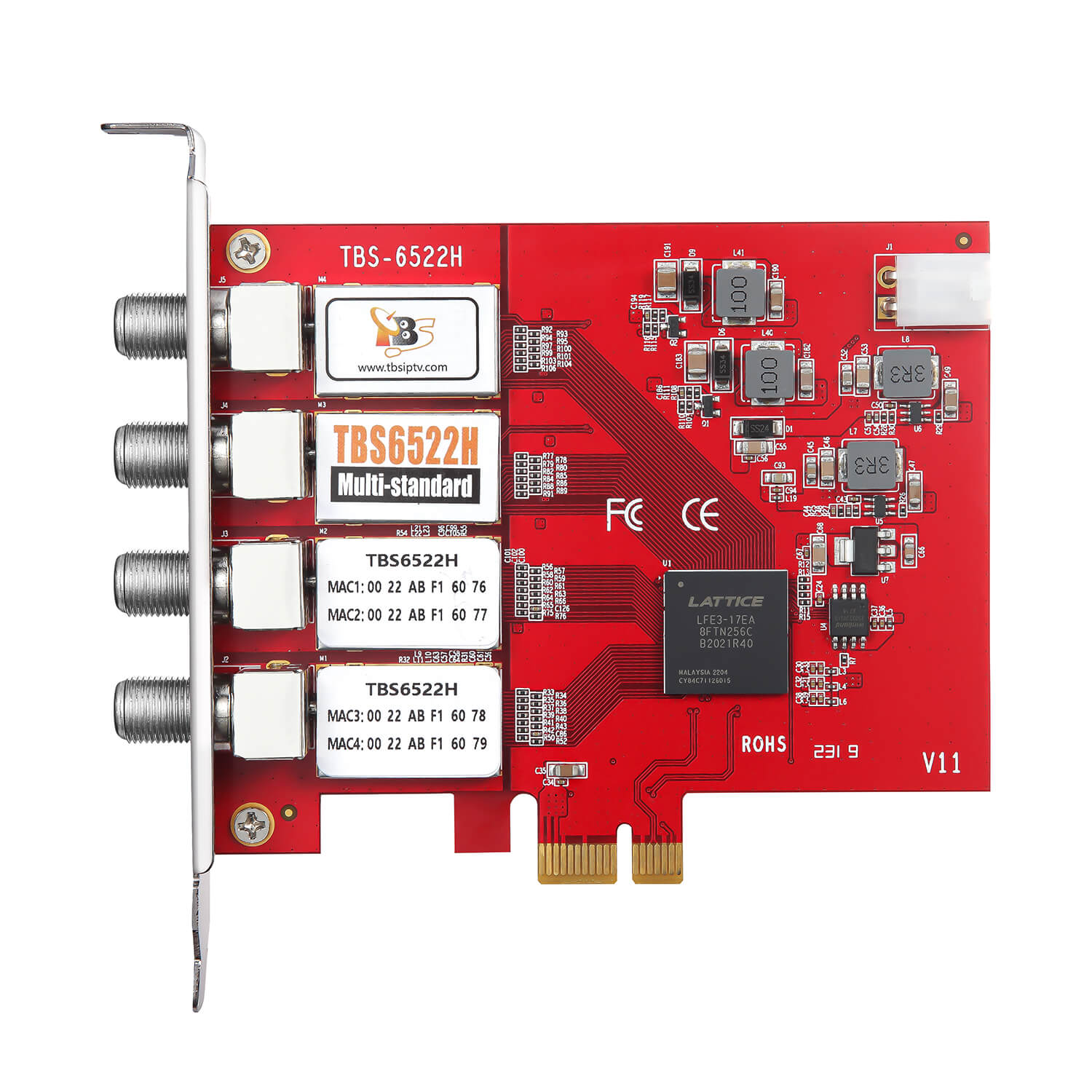

TBS6522H is a Quad tuner PCI express TV tuner card that supports multiple digital TV standards including DVB-S2X/S2/S/T2/T/C2/C (J.83A/B/C)/ISDB-T/C /ATSC1.0, four RF IN is independent with each other, it supports both dual DVB-S2X/S2 and dual DVB-T2/T/C2/C standard at the same time. With this multi-standard TV tuner card, it is much easier to switch between different digital TV signals.
TBS6522H not only supports normal DVB-S2X/DVB-S2/S QPSK, 8PSK which is supported by normal satellite receivers, but also supports CCM, VCM, 16APSK, 32APSK Stream Mode, which most satellite receiving devices can't support. With use of dedicated TBS tools, those special streams can be captured.
Both Windows BDA driver and the latest kernel 5.X Linux driver are ready. With quad tuners, TBS6522H enables you to watch TV channel from one transponder/satellite while recording other channels from other transponder/ satellite at the same time.
| Model | TBS6522H | |
| Connector | PCI-E | |
| 4 x RF (2 satellite tuner + 2 Ter/Cable tuner) | ||
| DVB-S2/S | QPSK | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| 8PSK | 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 | |
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| 32APSK | 3/4, 4/5, 5/6, 8/9, 9/10 | |
| DVB-S2X | QPSK | 1/4,1/3, 2/5 (S2-MODCODs) |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | ||
| 8/9, 9/10 (S2-MODCODs) | ||
| 11/45, 4/15, 14/45, 7/15 8/15, 32/45 | ||
| 8PSK (8APSK-L) | 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 32/45 | ||
| 16APSK | 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs) | |
| 7/15, 8/15, 26/45, 3/5, 32/45 | ||
| 32APSK (32APSK-L) | 3/4 ,4/5,5/6, 8/9, 9/10 (S2-MODCODs)32/45 ,11/15,7/9 ,(2/3) | |
| Symbol rate | 1 ~ 45Msymb/s | |
| DVB-T2 and T2-Lite | Receiving channel: VHF band, UHF band | |
| Bandwidth: 1.7, 5, 6, 7, 8MHz | ||
| FFT mode: 1K, 2K, 4K, 8K, 16K, 32K | ||
| 1/32, 1/16, 1/8, 1/4, 1/128, 19/128 and 19/256 guard intervals | ||
| 16, 32, 64, 128 and 256QAM modulations | ||
| Code rate: 1/2, 3/5, 2/3, 3/4, 4/5 and 5/6 | ||
| DVB-T | 6, 7 and 8MHz channel bandwidths | |
| 2 and 8K FFT | ||
| QPSK, 16 and 64QAM | ||
| 1/2, 2/3, 3/4, 5/6 and 7/8 code rates | ||
| DVB-C2 | 6 and 8MHz channel bandwidths | |
| 1/64 and 1/128 guard intervals | ||
| 16, 64, 256, 1024, 4096 QAM | ||
| 2/3, 3/4, 4/5, 5/6, 8/9 and 9/10 code rates | ||
| DVB-C | 1.7 to 7.2 Msym/s | |
| 16, 32, 64, 128 and 256QAM | ||
| 0.15 roll-off factor | ||
| J.83B (ITU-T J.83 v3.0 Annex B) | 5.056941, 5.360537, 5.6 Msym/s | |
| 0.18 and 0.12 roll-off factor | ||
| 64 and 256QAM | ||
| ISDB-T | 6, 7 and 8MHz channel bandwidths | |
| 2 and 8K FFT | ||
| QPSK, 16 and 64QAM | ||
| 1/2, 2/3, 3/4, 5/6 and 7/8 code rates | ||
| ISDB-C | 5.274 Msym/s | |
| 0.13 roll-off factor | ||
| 64 and 256QAM | ||
| TSMF (Transport Streams Multiplexing Frame) | ||
| ATSC 1.0 | 6MHz channel bandwidths | |
| 8VSB modulation | ||
| 2/3 code rate | ||
| Power consumption | ||
| Input/ Power: | 12V/6 ~ 18W | |
| temperature | 0° ~ 60° | |
| Other information: | ||
| System Requirements | Windows XP / Vista/ 7/8/10/11, Linux | |
| Available PCI Express x1, x4, x8 or x16 slot | ||
| Digital TV signal (ISDB-T/DVB-T2/C2/S2X/S2/T/C/S) | ||
| TV tuner card size | 12.1 * 10.8 * 2(cm) | |
| Package Contents | 1 x TBS6522H | |
| 1 x DC cable | ||
