Our new professional range of wireless access points, switches PoE and controllers for WiFi installations

300 Mbps / 2,4 Ghz

Supports high user density

Compact design

Multiple SSID

Large coverage. Range 140-160m (*)

1 Ethernet port

Power PoE 24Vdc or 12Vdc source

PoE Injector included

(*) The maximum distance will depend on the conditions of use of the AP

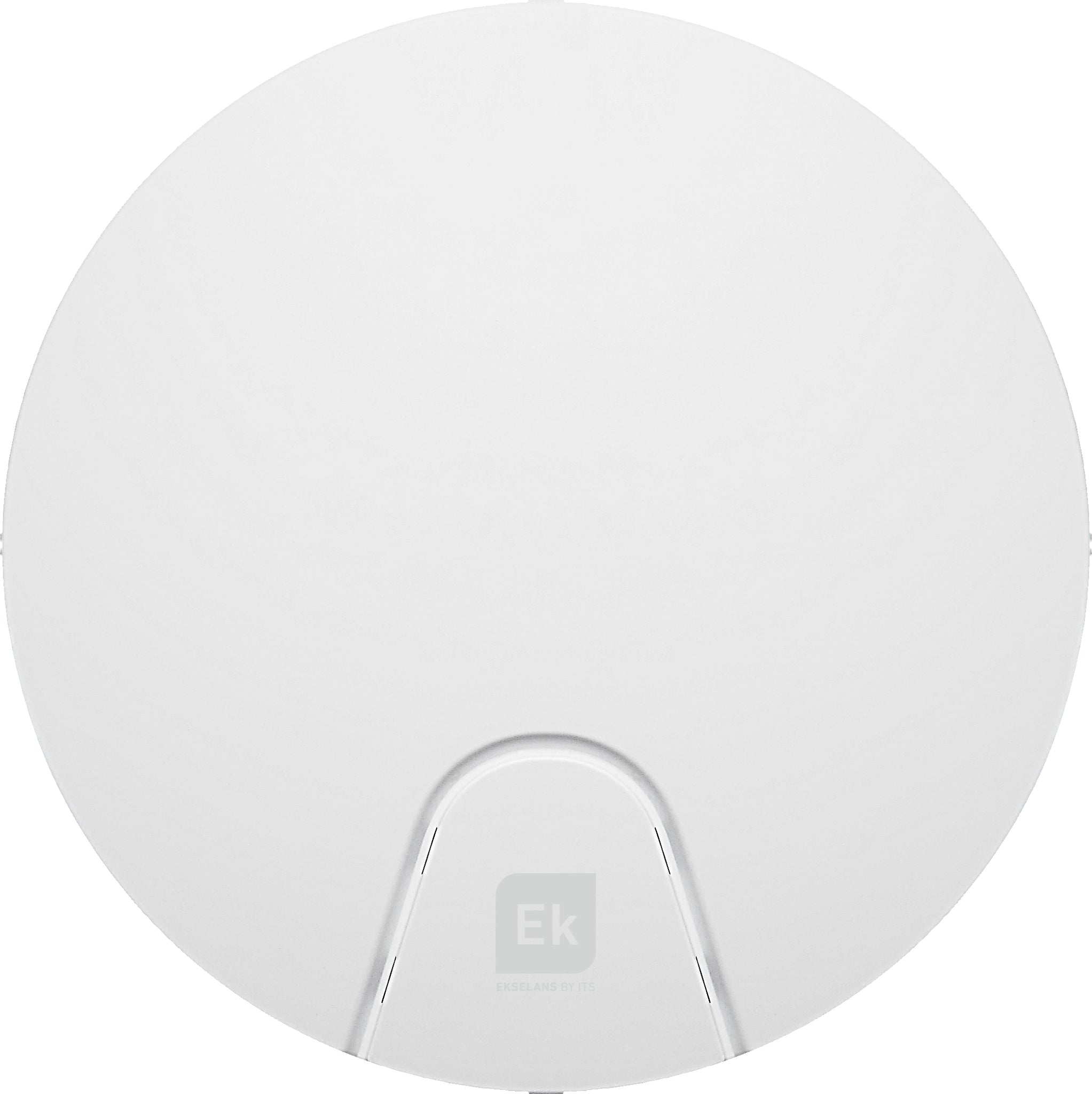

REFERENCE AP 300 LP
Code 330004

Hardware
Antenna 2 x Omni 5dbi
RF 2T2R, 300 Mbps MIMO
Transmission power
Max. 20 - 23 dBm (IEEE802.11 b/g/n) - 2.4Ghz
(EK recommends setting the maximum transmitting power according to the current legislation of each country)
Reset button Reset and factory settings

Software
Programming Network management WEB, TELNET
Options VLAN, QoS, bandwidth control, limitation “broadcast storm”,…

Connections
Ethernet Interface 1 x 10/100 Mbps Ethernet (connectors RJ45) ports
Power Supply PoE: 24V IEEE 802.3af ; DC 12 V/1A Connector

Wireless
Operating mode AP, Gateway, RepeaterThroughput
IEEE802.11b: 11Mbps
IEEE802.11g: 54Mbps
IEEE802.11n: 300Mbps
Frequency 2.4 GHz – 2.4835 GHz
Channel 13. Configurable for various standards
Modulation mode DSSS and OFDM
Coding BPSK, QPSK, 16QAM and 64QAM
Encryption 802.11i Security: WEP-64/128, TKIP(WPA-PSK) and
AES(WPA2-PSK)

General
Working temperature 0ºC - 55ºC
Power consumption Max 12,5 W
Dimensions Ø 15.7 x 3.6 cm
