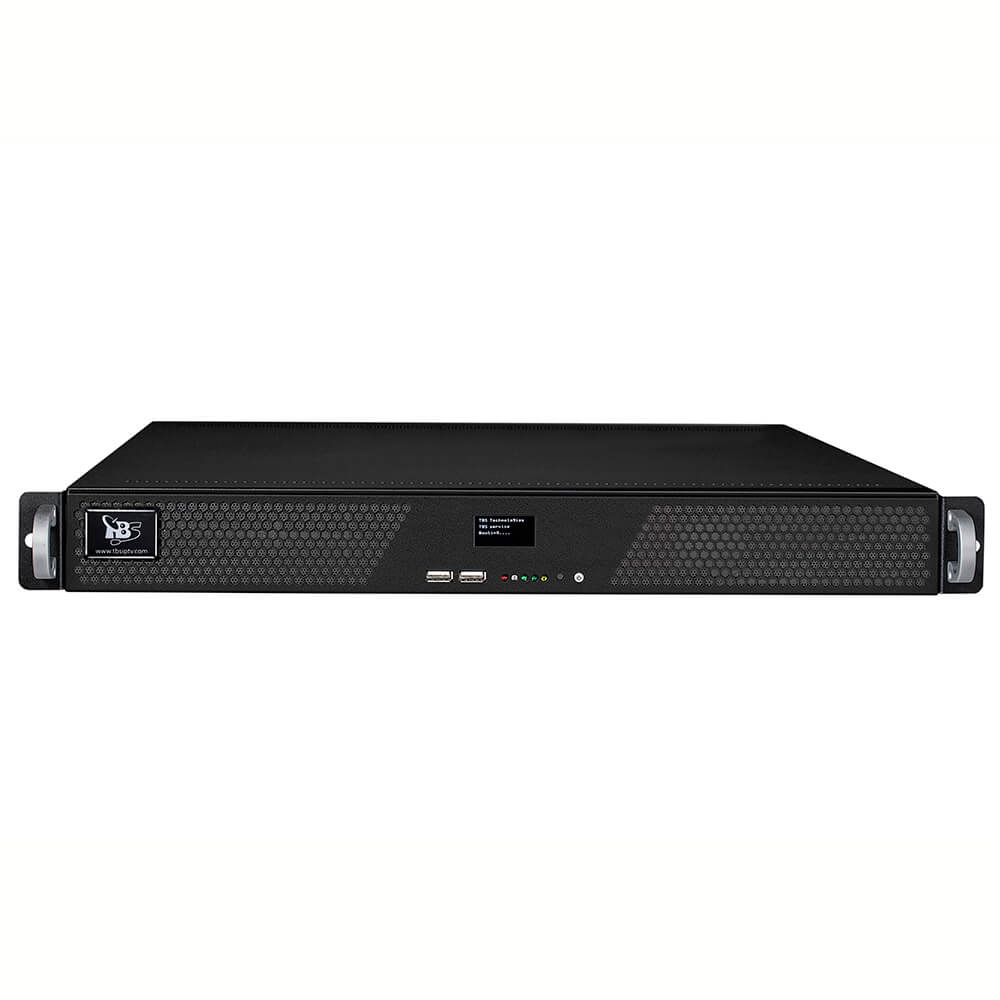

TBS8510 Multiple inputs H.264/H.265 IPTV Transcoder
TBS8510 Multiple inputs H.264/H.265 IPTV Transcoder
The TBS 8510 is a real-time multi-channel / multi format transcoder, that can convert media files from their source format into to any MPEG-2, MPEG-4 or H.264/H.265 format, bitrate and resolution.
The TBS8510 real-time transcoder is a cost-effective IPTV/OTT headend server, as it supports 30 HD channels or 60 SD channels transcoding, with protocol of UDP, RTP, RTMP, HTTP, HLS, and Media Files.
Based on the powerful hardware, the TBS 8510 real-time transcoder can deliver impressive images to a number of different servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming and so on.
The TBS 8510 can be easily managed through the NMS system and has become an ideal solution for operators to provide high quality video transcoding. It is a real multi-channel / multi-format transcoding server which answers all market requirements and is thus the suitable solution to Terrestrial, Satellite, Cable, IPTV networks.
Key Features:
* High performance transcoder supports to convert up to 30*Full HD or 60*SD profiles.
* Multiple inputs available: DVB/S2/S/T2/T/C, ISDB-T, HDMI, ASI or IP.
* Optimized for 1000Kbps for SD, 1800Kbps for HD 720P, 2500Kbps for HD 1080p.
* Supports HEVC / H.265 transcoding.
* Baseline, main profile and high profile with variable GOP.
* Multiple codec, Protocol, Bitrate Resolution, Profile per channel.
* GbE IP output: UDP, RTMP, Pull/Push HTTP, HTTP, Live Smooth (HLS), FTP M3u8 playlist files.
* Flexible GOP structures with Reference-frame and B-frame edit.
* Frame rate down and up conversion.
* High quality pre-processing including filtering, deinterlacing, cross scaling, image insertion.
* Support variable Bit Rate (VBR) encoding maximizes adaptive streaming video quality and bandwidth efficiency.
* Based on embedded Centos 7 Linux.
* DVB Subtitle and Logo insertion.
* Parameter templates settings and imports
* Easy configuration via Web UI
* Designed for secure 24*365 operation
Application:
1.OTT IPTV providers (Internet TV)
2.CATV networks (cable television)
3.IPTV system(Hotel,) support Mobile Device
| Size | 1 U |
| Interface | 2xRJ45, 1000M Base-T2 |
| 1xPCI-E slot | |
| Input | |
| Input signal | DVBS/S2, DVBT/T2, DVBC, ATSC, ISDBT, DTMB, HDMI, ASI |
| Input Net Stream | UDP, RTP, HTTP, HLS, Media Files |
| Video codecs | MPEG-2, AVC / H.264, HEVC / H.265 |
| Resolution | 1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576,704x576 |
| Audio codecs | AAC, MP2, MP3, AC-3 |
| Output | |
| Output types | UDP, RTMP, HTTP, HLS(ABR), Media Files |
| Video codecs | MPEG-2, AVC / H.264, HEVC / H.265 |
| Resolution | 1920x1080P, 1920x1080i, 1280x720P, 720x576i, 720x480i, 480x576, 544x576, 640x576, 704x576 |
| Audio codecs | AAC |
| Rate Control | CBR VBR |
| Transcoder | up to 40 SD / 20 HD1080 AVC(H.264) streams up to 40 SD / 18 HD1080 HEVC(H.265) streams |
| Power Consumption | Less than 200W |
| Dimensions | 592mm*438mm*53mm |
| Weight | 22 kg |
