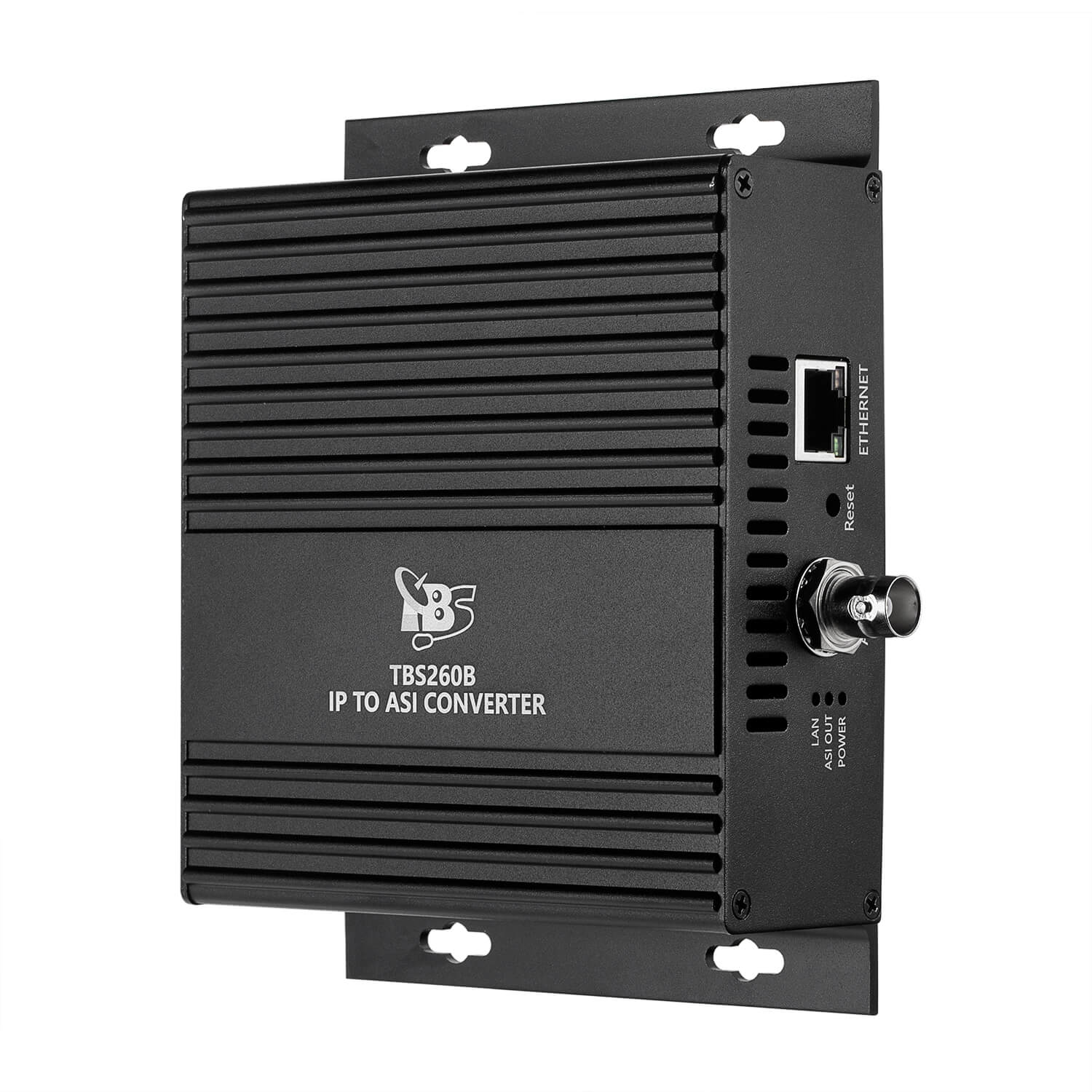

TBS260B DVB HD IP to ASI Converter

TBS260B DVB HD IP to ASI Converter

TBS260B DVB HD IP to ASI Converter

Regular price £399.00 + VAT

£478.80 inc VAT

TBS260B IP to ASI Gigabits converter is a head-end interface device which is used for DVB ASI and Ethernet. As a kind of IP receiver, this device can recover RTP/UDP database received from the transporting device into TS stream and then output it through the ASI output interface as part of IP stream receiver to turn the IP stream to standard TS stream. Moreover, it has the function to resist the IP transporting shake, and to...

in stock

Next Product →

TBS260B IP to ASI Gigabits converter is a head-end interface device which is used for DVB ASI and Ethernet. As a kind of IP receiver, this device can recover RTP/UDP database received from the transporting device into TS stream and then output it through the ASI output interface as part of IP stream receiver to turn the IP stream to standard TS stream. Moreover, it has the function to resist the IP transporting shake, and to restore the PCR of the TS stream.

TBS260B converter could combine with a lot of TBS products to use, it is ideal for digital TV Broadcasting System, IPTV System, Head-end system of Digital TV branch network.

Features:

  • Supports IP to ASI conversion
  • Supports UDP/RTP, unicast and multicast mode
  • Power off memory, saving the settings for auto-loading after reboot

Application:

  • Digital TV Broadcasting System
  • Digital TV Programs Transmission
  • IPTV System
  • Head-end system of Digital TV branch network
  • CATV Broadcasting system
  • Edge side of Digital TV backbone network
Interface RJ45 100/1000Mbps Ethernet interface
Function IP to ASI conversion
Output DVB-ASI
Stream input Unicast /multicast, UDP/RTP Protocol
Stream output TS stream
Control Web Interface
Jitter tolerance 1 ~ 120ms
Output return loss > 15dB
OS Linux or Windows XP, 2k3/2k8, Vista, 7, 8/8.1, 10
Voltage DC 12V
Power consumption less than 2.5W
Dimension 14.6*11.1*4 cm
Weight 800g
Package Contents 1 x TBS260B DVB HD IP to ASI Converter
1 x Power Adapter
1 x DC Line
1 x BNC Cable
