Our new professional range of wireless access points, switches PoE and controllers for WiFi installations

300 Mbps / 2,4 Ghz
Supports high user density
Compact design
Multiple SSID
Large coverage. Range 140-160m (*)
2 Ethernet ports
Power PoE 24Vdc or 12Vdc source
Injector PoE included

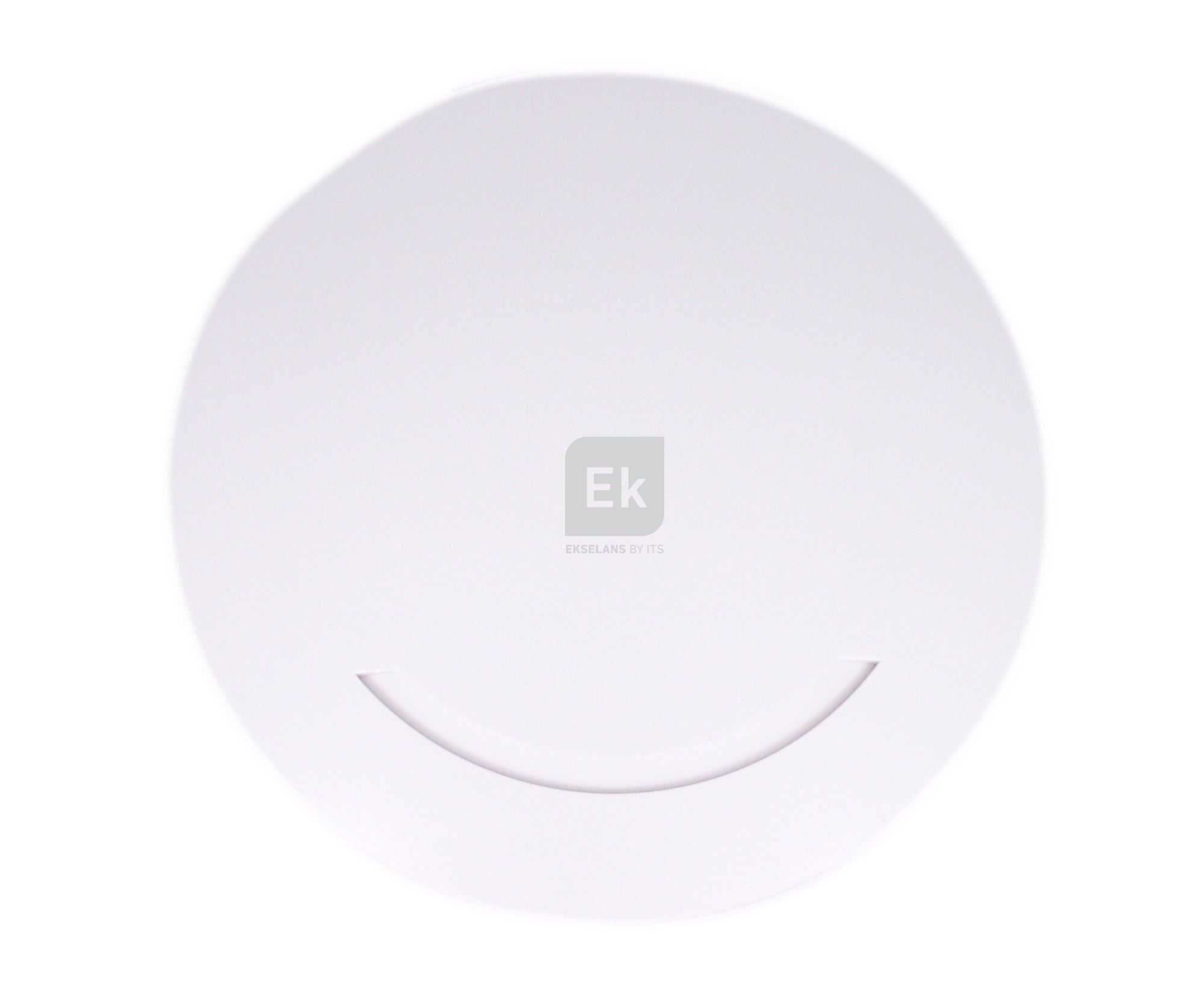

REFERENCE AP 300
Code 330001

Hardware
Antenna 2 x Omni 5dbi
RF 2T2R, 300 Mbps MIMO
Transmission power
Max. 23 - 25 dBm (IEEE802.11 b/g/n) - 2.4Ghz
(EK recommends setting the maximum transmitting power according
to the current legislation of each country)
Reset button Reset and factory settings

Software
Programming Network management WEB, TELNET
Options VLAN, QoS, bandwidth control, limitation “broadcast storm”,…

Connections
Ethernet Interface 2 x 10/100 Mbps Ethernet (connectors RJ45) ports
Power Supply PoE: 24V IEEE 802.3af ; DC 12 V/1A Connector

Wireless
Operating mode AP, Gateway, Repeater
Throughput
IEEE802.11b: 11Mbps
IEEE802.11g: 54Mbps
IEEE802.11n: 300Mbps
Frequency 2.4 GHz – 2.4835 GHz
Channel 13. Configurable for various standards
Modulation mode DSSS and OFDM
Coding BPSK, QPSK, 16QAM and 64QAM
Encryption 802.11i Security: WEP-64/128, TKIP(WPA-PSK) and
AES(WPA2-PSK)

General
Working temperature 0ºC - 55ºC
Power consumption Max 12,5 W
Dimensions Ø 18.8 x 3.1 cm
